Alpha One by RCA

Tony Varbanov

This item has been discontinued.
For replacement options please Click Here.

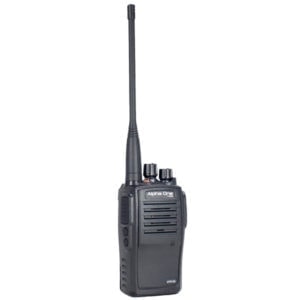

Alpha One by RCA provides professional two-way radio communication for small businesses. Alpha One’s APR100 is a feature packed, reliable, 4/5 watt commercial radio that is ideal for Retail Outlets, Restaurants, Warehousing, Light Construction, Small Hotels and Motels, Elementary Schools and much more.


Standard Configuration:

  • Radio – 4/5 Watt of Power, 16 Channels
  • Antenna – Standard 6″ Antenna
  • Battery – 1300mAh / 9.62Wh Lithium Ion Battery (8 Hours Usage at 5:5:90)
  • Belt Clip – Screw-In Heavy Duty Belt Clip

Options

Radio

  • APR100V 5 Watt of Power, VHF 136-174 MHz
  • APR100U 4 Watt of Power, UHF 400-470 MHz


Accessories

Antennas

  • ANH3500V-3 136-174 Short 3″ Antenna 136-174 MHz
  • ANH3500V-W 136-174 Standard 6″ Antenna 136-174 MHz
  • ANH3500U-3 440-470 Short 3″ Antenna 440-470 MHz
  • ANH3500U-6 440-470 Standard 6″ Antenna 440-470 MHz
  • ANH3500U-3 450-500 Short 3″ Antenna 450-500 MHz
  • ANH3500U-6 450-500 Standard 6″ Antenna 450-500 MHz

Batteries

  • B1013LI 1300mAh / 9.62Wh Lithium Ion Battery
  • B1016LI 1600mAh / 11.84Wh Lithium Ion Battery

Chargers

  • CH1001 PKG Single Unit Rapid Charger Kit
  • CH1006 PKG Multi Unit 6-Bank Rapid Charger Kit

Belt Clip

  • BC100 Screw-In Heavy Duty Belt Clip

Holsters

  • HN100FC Nylon Holster with Fixed Belt Clip
  • HN100FL Nylon Holster with Fixed Belt Loop
  • HN100SC Nylon Holster with Swivel Clip
  • HN100SL Nylon Holster with Swivel Belt Loop

Speaker Microphones

  • SM220-X03 Medium Duty, Speaker Mic with 3.5mm Aux. Jack – IP56 Rated
  • SM310-X03 Heavy Duty, Rubberized Speaker Mic with 3.5mm Aux. Jack – IP56 Rated

Earpieces and Surveillance Kits

  • SK22NE-X03 2-Wire Surveillance Kit with Palm Mic – IP56 Rated
  • SK31NE-X03 In-Ear Style 3-Wire Surveillance Kit with Lapel Mic and Palm PTT – IP56 Rated

Headsets

  • HS11V-X03 Lightweight Behind-the-Head Headset – IP56 Rated
  • HS61NR-X03 Heavy Duty, Noise Reduction, Over-the-Head, Dual Muff Headset – IP56 Rated


Compact and Comfortable Design – The APR100 has a very compact and lightweight design design which makes it very comfortable to carry around.

Full 8 Hour Shift Operation – The 1300mAh Lithium Ion battery can provide a radio usage for a full 8 hour shift.

Powerful Commercial Grade Performance – Despite it’s small size the APR100 provides optimum communication range with it’s 4 Watts of Power in UHF and 5 Watts in VHF.

Voice Operated Transmit (VOX) – Hands-free radio operation is available when using optional VOX accessories.

Channel Scanning – Continuously scans each channel for activity. When activity is detected, the scan automatically stops so you can hear the transmission and respond to it.

Voice Annunciation – Announces channel number when channel is changed.

Additional Features

  • Repeater Operation Capable
  • Battery Strength Indicator
  • Channel Scanning
  • Monitor
  • Auto Battery Save Mode
  • Low Battery Alert
  • Busy Channel Lockout (BCL)
  • Time-out-timer (TOT)



  • Frequency Bands – VHF 136-174 MHz; UHF 400-470 MHz.
  • Power Output – 4/5 Watts.
  • Channels – 16.
  • Channel Spacing – 12.5 or 25 kHz.
  • Frequency Stability – +/- 2.5ppm.
  • Conformance – FCC, IC, FCC 2013 Narrowband Compliant.
  • Environmental Protection – IP67 Certified.
  • Mil Specs – MIL-STD-810 C, 810 D, 810 E, 810 F, 810 G.
  • Operating Temperature – (-)4°F (-20°C) to (+)122°F (50°C).
  • Dimensions – 4.5” (H) x 2.25” (W) x 1.5” (D) (without antenna).
  • Weight – 9 ounces (225g) with 1300 mAh battery.

Download Files

Specification Sheet



2 Year Standard Manufacturer’s Warranty
